F24

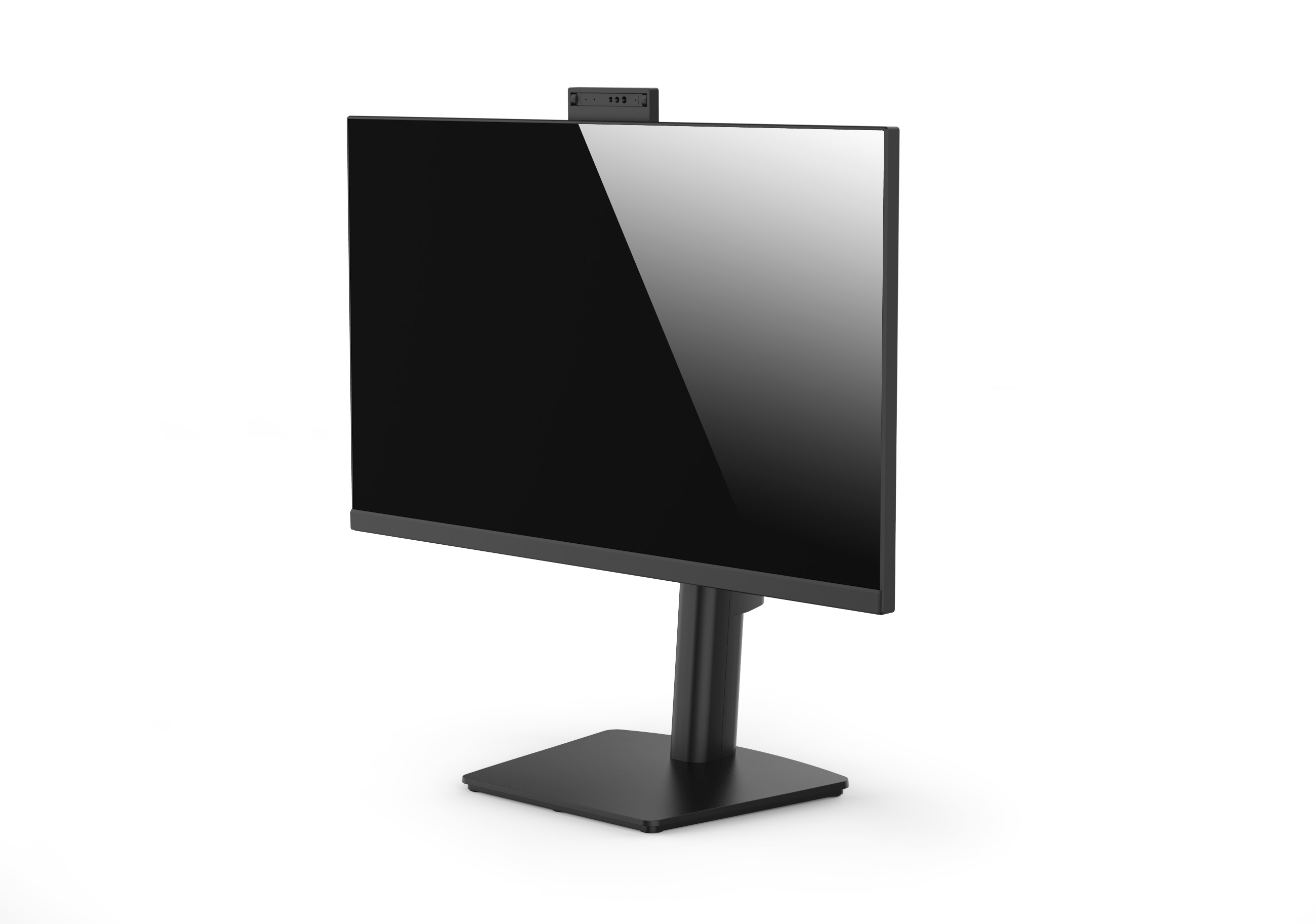

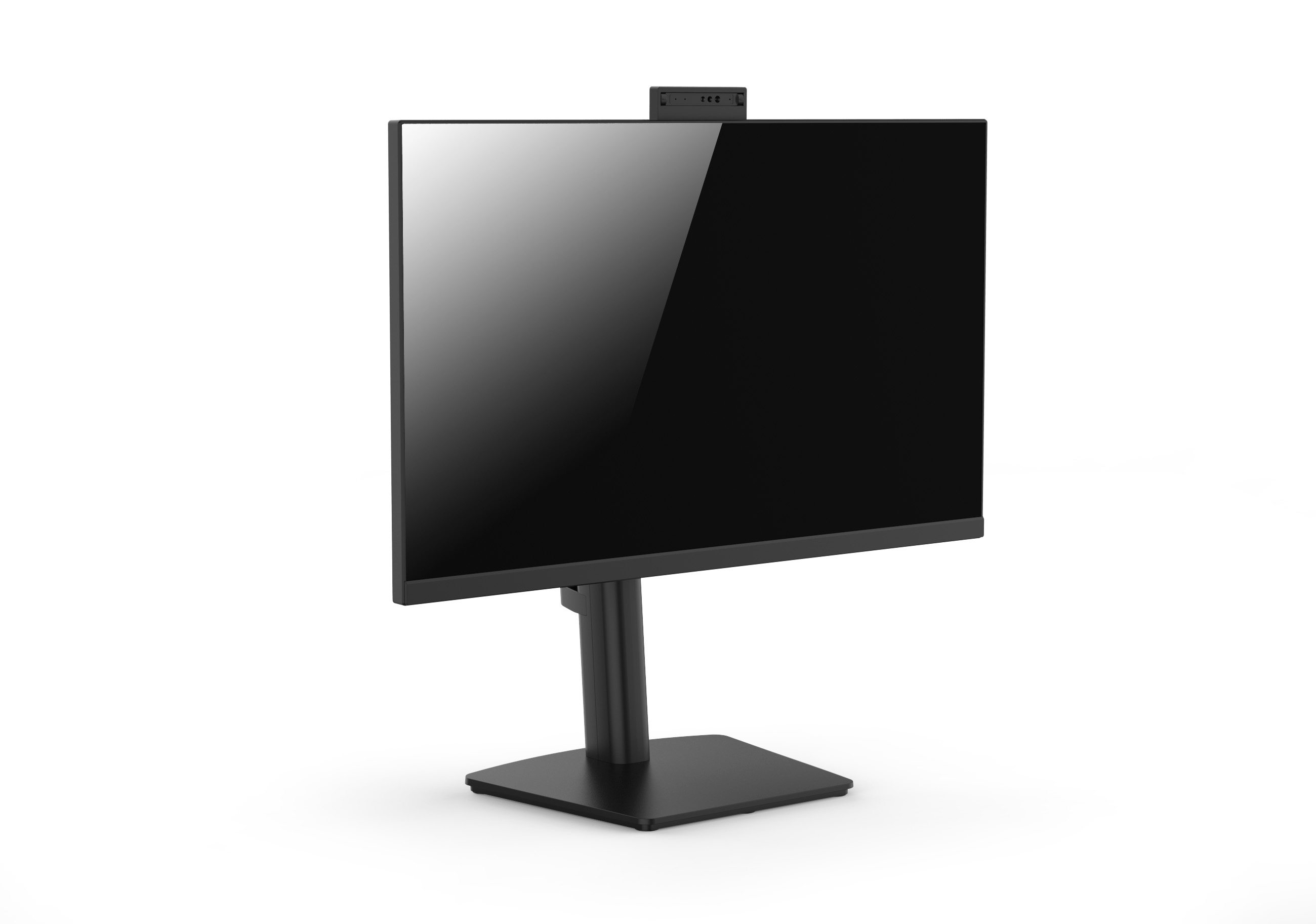

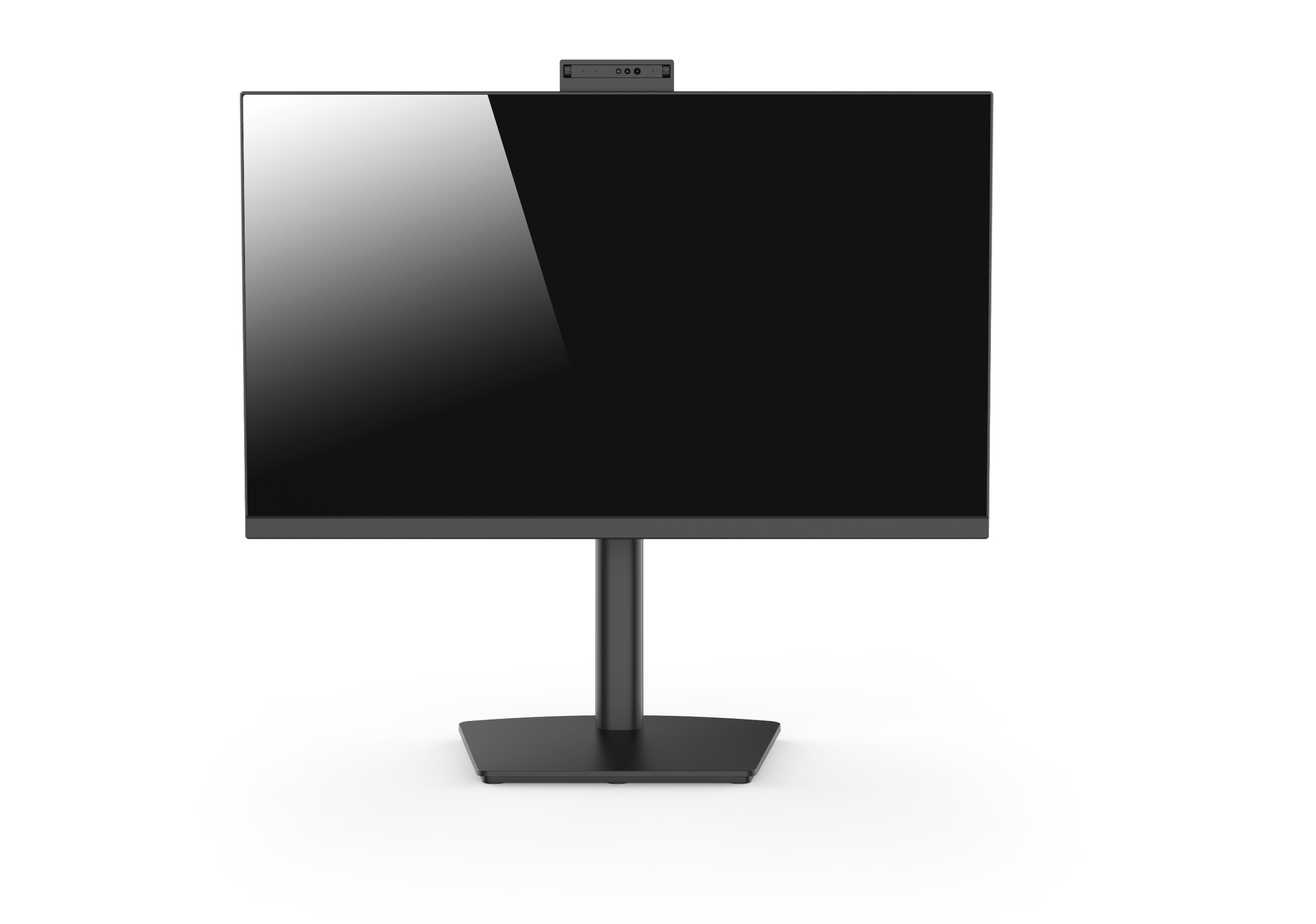

23.8 inch AIO PC 1920*1080
标签arcview报错：该文档ID(69)不存在。| KEY SPECIFICATION | ||||
| Motherboard form factor | Thin Mini ITX (17cm x 17 cm) MB, support Intel&AMD processors, up to 65W TDP | |||
| Dimension | 539mm (L)*323mm (H)*50mm (D) | |||
| Display | 23.8 inch, IPS WLED Backlight 1920x1080 Full HD View angle H=178DEG,V=178DEG(CR>=10) 250nits typical brightness 14ms response time 1000:1 contrast ratio | |||
| Frameless | 3 board frameless | |||
| Storage | Support 2x2.5"SATA HDD slot, Mobile rack HDD/m.2 SSD cage option | |||
| Optical Drive Disk | Support 1x 9.5mm ODD | |||
| Camera | 5MP webcam with dual mic, 2MP Windows Hello Camera with dual mic option Vertical and rotation adjustment option | |||
| Speaker | 2x 3W stereo speaker | |||
| WiFi&BT | m.2 WiFi&BT module | |||
| Standard I/O ports | 2xUSB 2.0+Combo audio jack, 2xUSB 3.0+1x Type C | |||
| Extension I/O ports | COM port option, 1xType C option, HDMI in option, card reader option | |||
| CHA intrusion detection | Option | |||

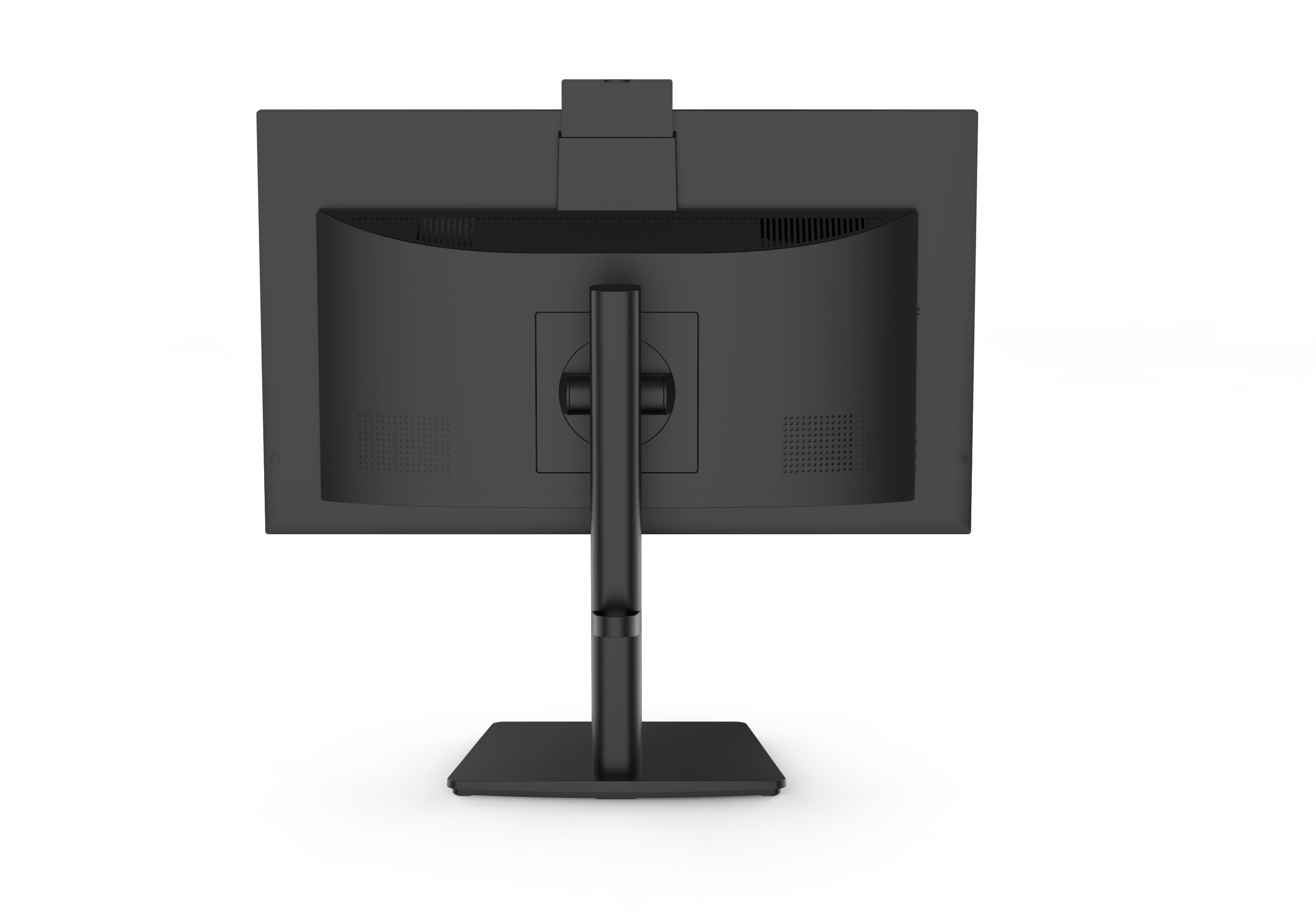

| VESA Mount | 100*100 mm | |||
| Kensington lock | Support | |||
| Cooling system | Heatsink with active fan | |||
| Stand base | Height adjustable stand | |||
| Power supply | Internal PSU/External power adapter(120W/150W) | |||
