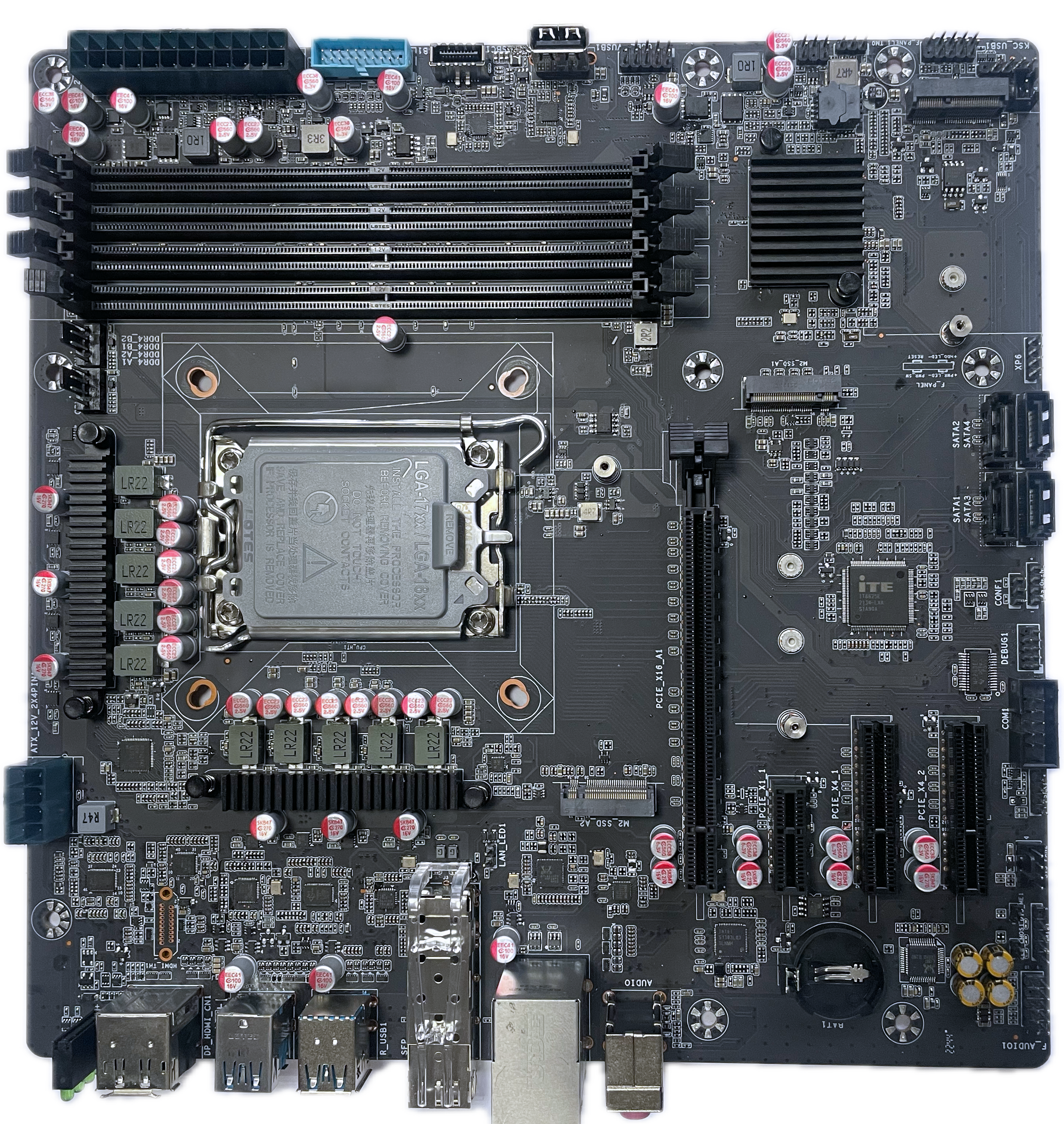

Intel Q670 M-ATX MB

Desktop MB

Key specification
CPUSupport for 12/13/14th Gen Intel core I7, I5, I3 Pentium, Celeron Processor (Support TDP up to 125W)
CHIPSETINTEL Q670
GraphicsBy CPU
Memory4 x DDR4 UDIMM socket supporting up to 128GB memory
Support for DDR4 3200MHz memory module
AudioRealtek® ALC887; 5.1 Channel HD Audio
LANIntel i225-V support 100/1000/2500Mbps and RTL8211FS 1Gb Fiber SFP
Storage Interface4 x SATA 6Gb/s connector
USB4x USB 3.2 Gen1 ports on back Panel Connector
1x USB 3.2 Gen2 port on back Panel  Connector
1x USB 3.2 Gen 2 Type C port support data and DP on back Panel Connector
2x USB 2.0 port. 2x USB3.0, 1x USB 3.2 Gen2x2 for Type C on Front panel header Connector
Expansion Slots1 x M.2 Socket  with M key Type 2280 connector for PCIE NVME SSD
1 x M.2 Socket  with M key Type 2242/2260/2280 connector for SATA SSD OR PCIE NVME SSD
2xPCI-E 4.0 X4 SLOT, Open Back
1xPCI-E 3.0 X1 SLOT
1xPCI-E 5.0 X16 SLOT
Internal Connectors1 x Front panel header;  Rest/HDD LED/Power LED/Power Switch
4 x SATA 6Gb/s connector
1 x 9P USB2.0 Header
1 x 19P Header USB3.2 Gen1 x2
1 x USB 3.2 Gen2 internal header for front panel cable with 2x2 and Type-C support
1 x 9P Header RS232
1 x 9P Header Front Audio
1 x CPU Fan Header 1*4Pin
2 x SYS Fan Header 1*4Pin
1 x 4P ATX Connector
1 x 2P CLR CMOS Header
1 x 4P Intrusion detector
1 x 2P Lan Led
1 x 2P Header Flash Descriptor Security Override
1 x 24P ATX Connector
1 x 4P Header DMIC
1 x HDMI vertical through-hole connector
1 x USB2.0 vertical through-hole connector
1 x 4P Header Buzzer
1 x  Front panel Audio (2*5pin)
Back Panel Connectors1 x 2 ports Audio Jack 3.5mm (Line-out & Mic in)
1 x Dual Stack USB3.2 Gen1
1 x USB3.2 Gen2 port + USB3.2 Gen2 type C port support data and DP
1 x HDMI + DP Combo port
1 x RJ45 + Dual Stack USB3.2 Gen1 port
1 x SFP
Form Factor240mm x240mm
